|Material:||A05,A49,High Chrome Alloy||Theory:||Centrifugal|
|Application:||Mining , Tailing , Sand Suction||Structure:||One Stage|
|Feature:||Wear Resistant||Drive Type:||V-belt,Elastic Coupling, Gear Red|
Diesel Slurry Pump,
Abrasive Slurry Pump

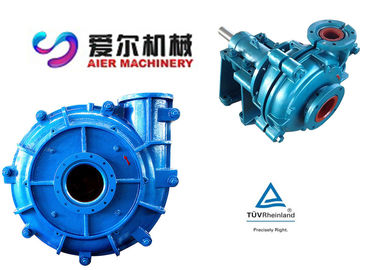

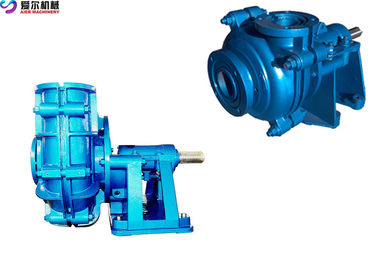

Fly Ash Acid Resistant Mining Slurry pump with wear-resistant and anti-acid wet parts of A05, A49 Material
high chrome alloy single stage gold mining slurry pump
Alumina,Copper mining,Iron ore,Gas oil,Coal ,Electric industry,Phosphate,Bauxite,Gold,Potash, Wolfram,Water sewerage utilities,Sugar,Tobacco,Chemical fertilizer .
The frame plate for WA series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners.
The shaft seals for WA series can be packing seal, centrifugal seal or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.
All the wet parts of the pump are interchangable with most international mining pumps.
1. wide options of impeller
2. wear resistant metal or rubber wet end parts with long service life and high efficiency
3. double casing slurry pump

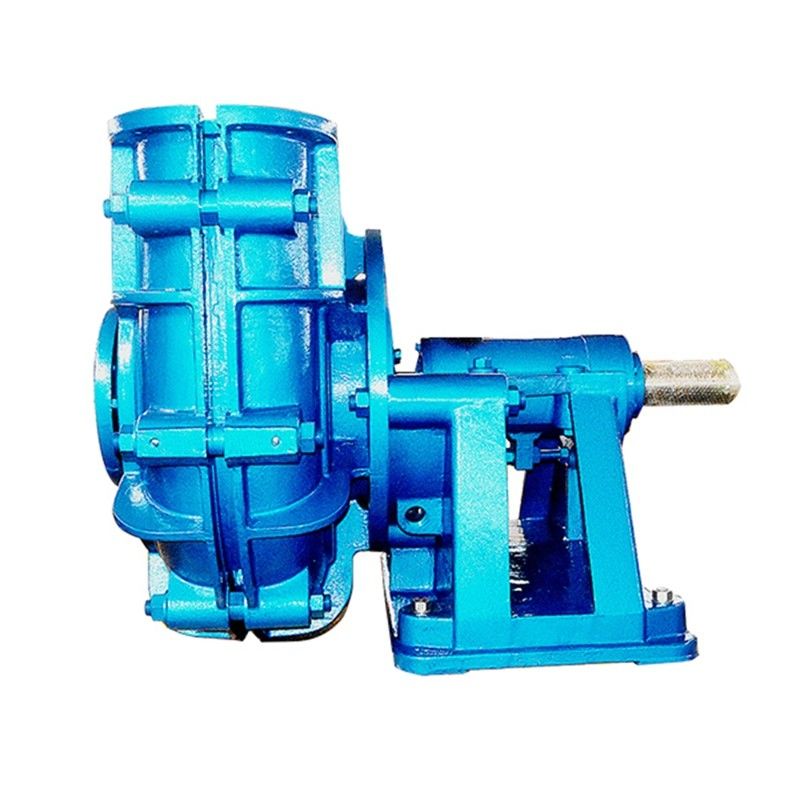

4. scantilevered horizontal centrifugal slurry pump
5. available with gland seal, centrifugal seal or mechanical seal
6. grease or oil lubrication
200: Outlet diameter: mm 100: Outlet diameter: mm
WA: Pump type: chrome alloy lined WAJ: Pump type: rubber lined
ST: Frame plate type D: Frame plate type
|Part Name||Material||Specification||HRC||Application||OEM Code|
|Liners & Impeller||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|AB15: 14%-18% chrome white iron||≥59||Used for higher wear condition||A07|
|AB29: 27%-29% chrome white iron||43||Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4||A49|
|AB33: 33%-37% chrome white iron||It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.||A33|
|Expeller & expeller ring||Metal||B27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Stuffing Box||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Frame/Cover plate, bearing house & base||Metal||Grey iron||G01|
