|Material:||A05, A49, R08, R26, R33, R55, Cr26, Cr27, Cr30||OEM:||Manufacture Accroding To Drawing|
|Application:||Interchangable To Minng Slurry Pump, Ash Slurry Pump, Sand Dreding Pump Parts||Interchangable:||Interchangable To Most Standard Slurry Pumps|
|Design:||According To World Famous Brand Slurry Pump|
Abrasive Slurry Pump,
Sand Vacuum Pump
Metallurgy Mining Slurry Pump spare parts
We offer the spares for all series mining slurry pumps, they include
|- Impeller,||- Lantern restrictor,|
|- Throat bush,||- Cover plate bolt,|
|- Front liner, Back liner,||- Volute,|
|- Wear plate,||- Throat bush, Shaft sleeve,|
|- Case, cover,||- Cover plate liner, Frame plate liner ,|
|- Stuffing box,||Volute liner, Volute packing|
The pump parts can be made of high chrome, a wide variety of elastomer or the latest in ceramic materials for longer service life and higher efficiency.
- High Chrome Cast Iron
- Stainless Steel
- Natural Rubber
- Specific Rubber
|Pump Part Description||Material||Application|
|Impeller, liner, throat bush etc.||High chrome cast iron||For mines and other wear resistance working conditions|
|Impeller, liner, throat bush, F.P.L. Insert, etc.||Natural rubber, elastomer and polyurethane||Corrosion (especially acid) and abrasion conditions|
|Cover plate, frame plate, base, bearing housing, etc.||Grey iron and ductile iron||All kinds of working conditions|
|Expeller, expeller ring, stuffing box, etc.||Stainless steel, high chrome||Chemical industry, corrosion (especially for acid) conditions|
|Shaft, shaft sleeve, lantern ring, neck ring, etc.||Stainless steel, 1045 steel|
|Seal, O ring||Elastomer|
|Bolt||Stainless steel, 1045 steel|

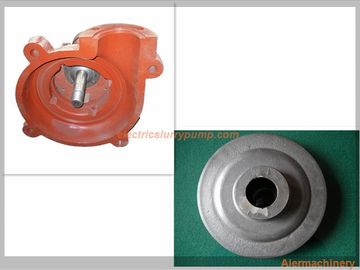

This is volute liner for slurry pump with excellent wear resistance, corrosion resistance and large passage area.
Good casing design makes maintenance easily and cost much lower. Advanced heat treat technology is used to treat high chrome alloy and results with a compact micro-structure and a high quality product.

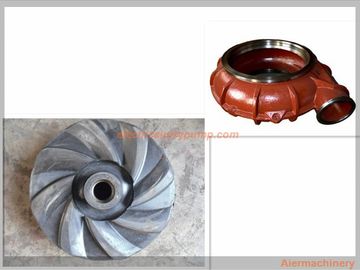

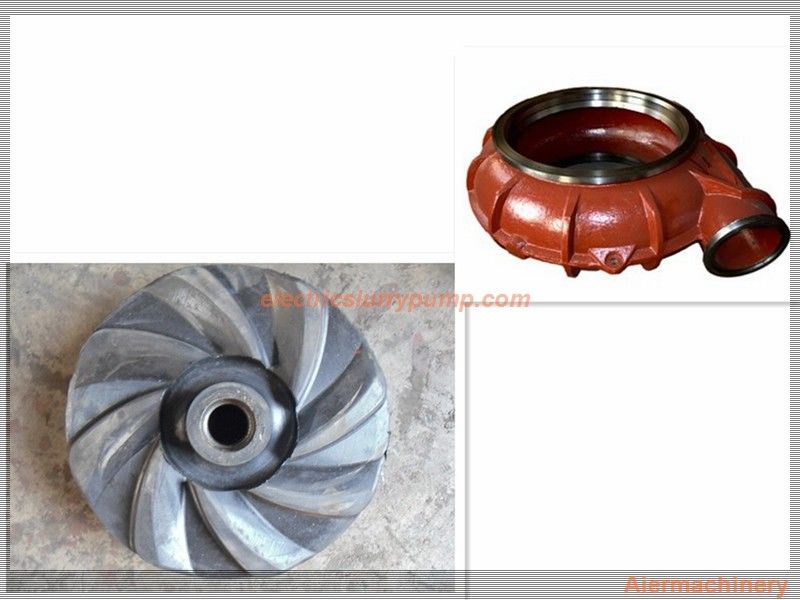

Slurry pump parts-----impeller:
The pump impeller is made of rubber or metal, and the metal liner and rubber liner are interchangeable .The back vane can reduce the sealing pressure ,and it can also cut down backflow to the largest extent at the same time .On the other hand ,cast-in impeller threads are more suitable for slurry .
They are made of iron, steel, rubber or high-chromium alloy. After the OEM parts are supplied by us depending on the machining drawing, andomponents are produced, we will provide customer with sample for quality detection.
Slurry Pump Part Material
|Part Name||Material||Specification||HRC||Application||OEM Code|
|Liners & Impeller||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|AB15: 14%-18% chrome white iron||≥59||Used for higher wear condition||A07|
|AB29: 27%-29% chrome white iron||43||Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4||A49|
|AB33: 33%-37% chrome white iron||It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.||A33|
|Expeller & expeller ring||Metal||B27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
