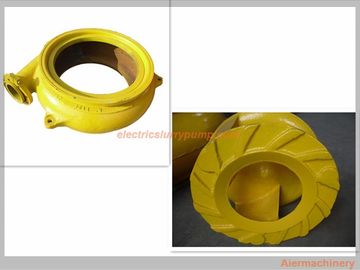

Large Image :  Aier Ash Pump Parts High Chrome Impeller

Product Details:

Place of Origin: Hebei, China
Brand Name: Aier
Model Number: AH, G, WA, WG, WY, WZ, WL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: iron frame, wooden case
Delivery Time: 20-40 DAYS
Payment Terms: T/T, L/C
Supply Ability: 200 PER MONTH
Contact Now
Detailed Product Description
Features: Anti-wear, Abrasive Resistant, Anti-corrison Material: A05, A07, A33, A49,R08, R26, R33, R55
OEM: Manufacture Accroding To Drawing Application: Interchangable To Minng Slurry Pump, Ash Slurry Pump, Sand Dreding Pump Parts
Interchangable: Interchangable To Most Standard Slurry Pumps

Mining Slurry Pump Parts of high chrome cast irom and interchangalbe with most standrad slurry pump parts



Mining slurry pump and parts



1. Mining Slurry pump parts

Interchangeable with most mining slurry pumps and  sand gravel pumps

For unlisted slurry pump parts, OEM service offered---Drawings needed.



- Metal Impeller; rubber impeller

Metal Liner

Rubber Liner

Bearing Assembly

different types of base

- Pump Volutes;

Cover Plate

- Frame Plate

- shaft sleeves



2. Materials

High chrome alloy:   A05, A07, A33, A49, etc.

Natural rubber:         R08, R26, R33, R55, etc.



3. OEM slurry pump part codes

Here we list some OEM part codes for reference:

Impeller:      127, 147, 145, C2127, D3147, E4147, F6147, G8147, G10147, FAM1247

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110,



5. Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.



Slurry Pump Part Material



Part Name Material Specification HRC Application OEM Code
Liners & Impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron   It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Rubber       R08
      R26
      R33
      R55
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron     G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron     G01
Frame/Cover plate, bearing house & base Metal Grey iron     G01
Ductile iron     D21
Shaft Metal Carbon steel     E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13     C21
304 SS     C22
316 SS     C23
