|Material:||High Chrome Cast Iron, A05 A49||Application:||Mining, Dewatering, High Pressure Slurry Transfering|

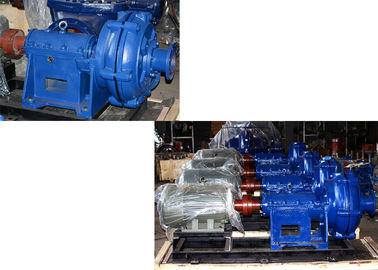

Centrifugal gold mining slurry pump of anti-corrison and wear resistant material of high chrome cast iron

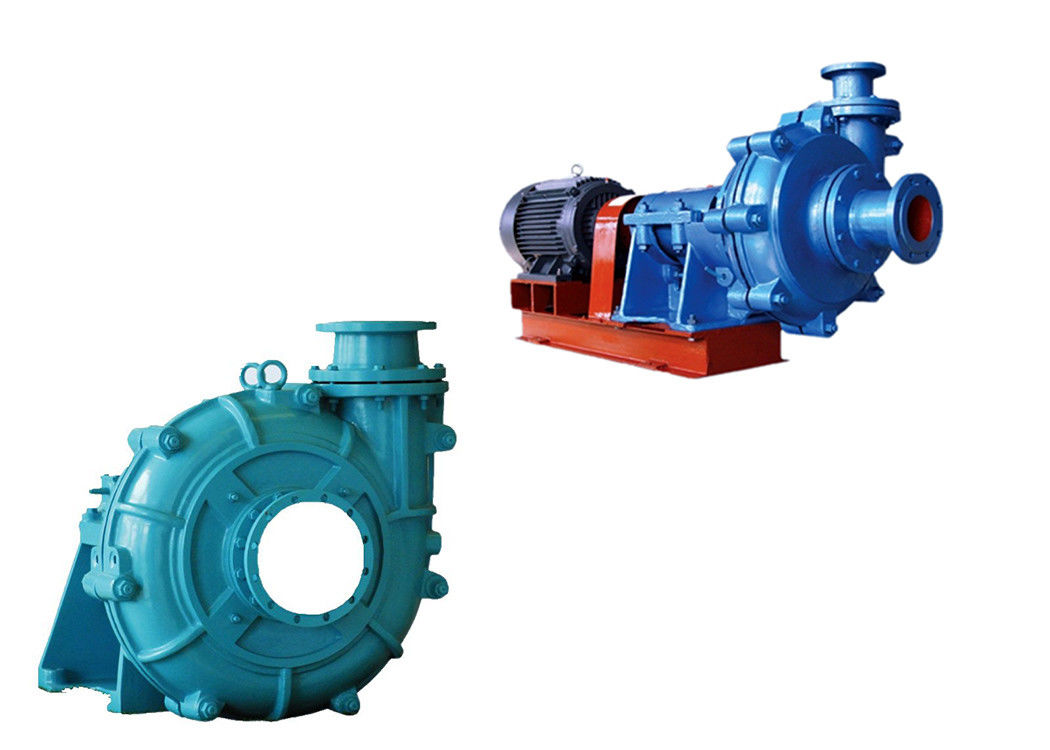

Heavy Duty Centrifugal Slurry Pumps
Discharge Diameters 1" to 14" (25mm to 350mm)
Heads Range to 140m
Flow Rate to 5300m3/h
Heavy Duty Centrifugal Slurry Pumps Slurry Pump is a new energy-saving centrifugal pump. They are innovative in hydraulic designs, structural designs and materials of castings after integrating congeneric products throughout the world. They have many features: high efficiency, reasonable design, reliable operation, long in service time, easy maintenance, and low running costs and so on.
Heavy Duty Centrifugal Slurry Pumps are widely used for handling abrasive or corrosive slurries in power, metallurgical, mining, coal, as well as chemical industries. For example, flushing ash in power plants and pumping coal slurry in coal preparation plants. They are suitable for handling abrasive and corrosive solids-bearing slurry with maximum concentrations of wt.45%(ash) and wt.60%(ore).
Structural feature of Heavy Duty Centrifugal Slurry Pumps
Pump Body It is a horizontal cantilevered slurry double-cases pump. The pump head includes cases, impeller, and shaft seal. Double-cases pump centrally split vertical spilt direction. Discharge port can be positioned at 8 different position at an interval of 45°. The outside cases made by HT200 or HT500-7, connecting with bolts. The inside cases (volute case, front liner, back liner) made by high-chrome alloy or rubber materials.
Impeller Front and back cover plates with back vanes to reduce leakage and increase operating life, impeller and shaft is firmly connected by ladder-shaped with disassembly ring, "O" rubber ring is used between liner and volute casing and it is very convenient and reliable.
Shaft Seal Expeller seal and packing seal.
