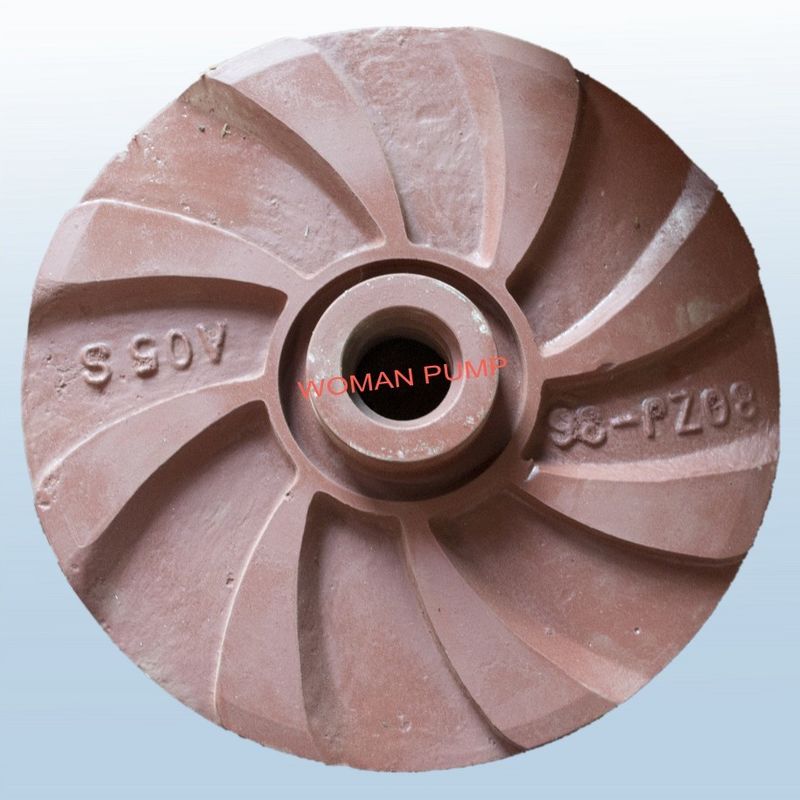

Single Foam Transfer Pump With High Chrome Impeller Abrasion Resistant Material

More than 10 years slurry pump and parts manufacture experience

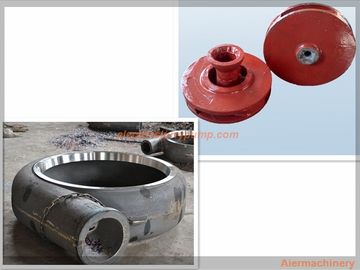

1. Slurry pump parts

Completely interchangeable with slurry pumps and  gravel pumps

For unlisted slurry pump parts, OEM service offered---Drawings needed.

- Impeller

- Metal Liner

- Rubber Liner

- Bearing Assembly

- Base

- Pump Volute;

- Cover Plate & Frame Plate

- Others

2. Materials

High chrome alloy: A05, A07, A33, A49, etc.

Natural rubber: R08, R26, R33, , etc.

Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.

Bearing assembly &nd; a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

Liners &nd; easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomeric. Elastomeric seal rings back all liner joints.

The cover plate is produced using elastomer or hard metal,
such as natural rubber, high - chromium alloy, etc.
It has various sizes and styles, and the installation is very easy. Additionally, OEM design is accepted. This product is also named as slurry pump liner, and it is also an overflow component. It can form a pump chamber with throat bush and frame plate liner insert. Meanwhile, it is white iron with high-chromium alloy whose content as much as 27%, and it shows good resistance to abrasion

Casing &nd; Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

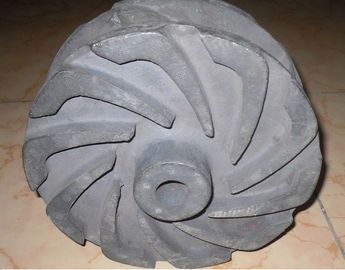

Impeller &nd; front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throat bush &nd; wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

One-piece frame &nd; a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Our Services

- OEM Service

We also provide OEM service according to customer's any special requirements .

- Processing Service

- Can manufacture parts according to your drawings.

- Materials as follows:

1. High Chrome concentration alloy 1, Rockwell hardness HRC ≥60, high abrasion application.

2. High Chrome concentration alloy 2, Rockwell hardness HRC ≥58, high abrasion application .
