Product Details:
Payment & Shipping Terms:
|
| Material: | A05,A49,Cr26,Cr27,High Chrome Alloy, Anti-abrasive | Structure: | Single-stage |
|---|---|---|---|
| Theory: | Centrifugal | Power: | Electric Or Diesel Engine |
| Application: | Mining, Dredging, Sand Reclaimation | ||
| Highlight: | Hydraulic Dredge Pump,River Sand Pumping Machine |
||

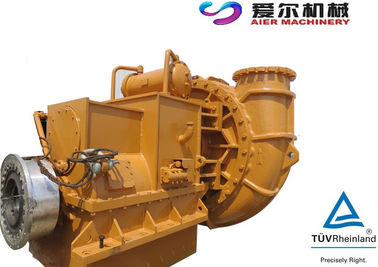

heavy duty dredging sand pump for river gravel dredging sand suction with anti-abrasive material of A05, Cr26, A49,Cr27
WS gravel pump
Typical Applications:
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Mill Discharge
Sugar Beet
Cyclone Feed
Slag Granulation
WS gravel pump part - bowl
Advantages:
1. Choice of abrasion resistant alloys for specific application
2. Most efficient volute and impeller design
3. Speed an power to suit your service conditions
4. Maxium size and percentage of particles
5. Minimal repairs and downtime
6. Reduced operating costs
WS gravel pump structure
Description
1. WS gravel pump is designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.
2. They are suitable for delivering slurries in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. WSG gravel pumps is of high-head one.
3. Construction of this pump is of single casing connected by means of clamp bans and wide wet-passage.
4. The wet-parts are made of Ni-hard and high chromium abrasion&nd;resistance alloys. The discharged direction of pump can be oriented in any direction of 360°.
5. This type of pump possesses the advantages of easy installing and operation, good performance of NPSH and abrasion-resistance.
Features
1. WS gravel pump is of horizontal cantilevered single-casing centrifugal pump.
2. Construction of this pump is of single casing connected by means of clamp bands and the discharge direction of pump can be oriented in any direction of 360. The type of pump possesses the advantages of easy installation.
3. The cylinder-type bearing assembly with oil lubrication is adopted by the pump. It is suit for adjusting the distance between impeller and pump. The bearing assembly uses oil lubrication.
4. Three kinds of shaft seal---mechanical seal, expeller seal and packing seal
5. Wide passage, good performance of NPSH, anti-wearing and anti-corrosion, and high efficiency
6. The type of driver just have v belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.
Main WS gravel pump parts
WS gravel pump performance data
| Model | Allowable Mating Max Power(kw) | Clear Water Performance | Max Particle Through | Impeller Diameter | ||||
| Max Capacity |
Max Head | Max Allowed Speed | Max Efficiency | NPSH | ||||
| Q(m3/h) | H(m) | n(rpm) | ŋ(%) | (m) | (mm) | (mm) | ||
| 100WS-D | 60 | 320 | 52 | 1400 | 58 | 2.5-3.5 | 82 | 378 |
| 150WS-E | 120 | 790 | 50 | 1400 | 60 | 3-4.5 | 127 | 378 |
| 150WSG-F | 260 | 1050 | 86 | 1100 | 71 | 2-5 | 140 | 610 |
| 150WSG-S | 560 | 1050 | 86 | 1100 | 71 | 2-5 | 140 | 610 |
| 200WS-F | 260 | 900 | 50 | 1000 | 65 | 3-7.5 | 178 | 533 |
| 200WS-S | 560 | 900 | 50 | 1000 | 65 | 3-7.5 | 178 | 533 |
| 200WS-X | 560 | 900 | 50 | 1000 | 65 | 3-7.5 | 178 | 533 |
| 200WSG-S | 560 | 1420 | 80 | 950 | 72 | 2-5 | 180 | 686 |
| 200WSG-X | 560 | 1420 | 80 | 950 | 72 | 2-5 | 180 | 686 |
| 250WS-G | 600 | 1600 | 60 | 850 | 65 | 1.5-4.5 | 220 | 667 |
| 250WS-ST | 560 | 1600 | 60 | 850 | 65 | 1.5-4.5 | 220 | 667 |
| 250WSG-G | 600 | 2850 | 80 | 700 | 73 | 2-10 | 210 | 915 |
| 250WSG-T | 1200 | 2850 | 80 | 700 | 73 | 2-10 | 210 | 915 |
| 300WS-G | 600 | 3650 | 70 | 700 | 68 | 2-8 | 241 | 864 |
| 300WS-T | 1200 | 3650 | 70 | 700 | 68 | 2-8 | 241 | 864 |
| 350WS-G | 600 | 3600 | 44 | 500 | 70 | 3-9 | 254 | 1016 |
| 350WSG-TU | 1200 | 4000 | 70 | 500 | 72 | 3-6 | 230 | 1220 |
| 400WS-G | 600 | 4300 | 50 | 500 | 72 | 3-6 | 254 | 1067 |
| 400WS-TU | 1200 | 4300 | 50 | 500 | 72 | 3-6 | 254 | 1067 |
| 450WS-TU | 1200 | 5400 | 46 | 400 | 68 | 3-6 | 330 | 1270 |
Material list
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Bowl, door, back liner & impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Door clamp plate, bearing house & base | Metal | Grey iron | G01 | ||
| Ductile iron | D21 | ||||
| Shaft | Metal | Carbon steel | E05 | ||
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | C21 | ||
| 304 SS | C22 | ||||
| 316 SS | C23 | ||||
| Joint rings & seals | Rubber | Butyl | S21 | ||
| EPDM rubber | S01 | ||||
| Nitrile | S10 | ||||
| Hypalon | S31 | ||||
| Neoprene | S44/S42 | ||||
| Viton | S50 |
