Material: | High Chrome Cast Iron | Power: | Electric |
---|---|---|---|
Structure: | Vertical Submerged | Theory: | Centrifugal |
Application: | Dewatering , Mining Process | ||
High Light: | Vertical Spindle Pump,Vertical Cantilever Pump |
Submerged Sump vetical slurry pump with alloy or rubber liner wear resistant and anti-corrison

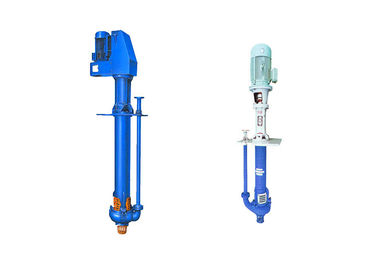

Vertical slurry sump pump are vertical, shaft driven centrifugal slurry pumps designed for
transferring abrasive and high density slurry from sumps,pits and other submersible sources.MSP Models are available in sizes ranging from 40mm to 250mm discharge and are capable of flow
rates from 5 to 350 liters per second (79-5540USGPM) at heads of up to 40 meters (130ft).
The heavy duty design of the MSP pumps allows the passage of large particles with a diameter of
up to 50mm.
Features of Vertical Slurry Pump
· Cantilevered shaft design
· Double suction semi-open impeller
· Agitator option keeps solids in suspension
· Different length of the pump drive shaft or inhaled could be selected
· Material of Impeller could be wear-resistant metal or rubber
· SPR models feature full rubber covering for corrosion resistance
· V-belt drive, direct drive, and flexible coupling. Bearing to lubricate oils.
· No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available
Type | Intake Flange | Discharge Flange | ||||||
O.D. | I.D. | C/C For Holes |
Hole | O.D. | I.D. | C/C For Holes |
Hole | |
40WY-P | φ170 | φ81 | φ140 | 4-φ14 | φ127 | φ40 | φ98 | 4-φ16 |
40WYJ-P | ||||||||
65WY-Q | φ240 | φ104 | φ215 | 4-φ14 | φ178 | φ65 | φ140 | 4-φ19 |
65WYJ-Q | ||||||||
100WY-R | φ380 | φ175 | φ325 | 4-φ24 | φ229 | φ100 | φ191 | 8-φ19 |
100WYJ-R | ||||||||
150WY-S | φ280 | φ150 | φ241 | 8-φ22 | ||||
150WYJ-S | ||||||||
200WY-S | φ343 | φ200 | φ298 | 8-φ22 | ||||
200WYJ-S | ||||||||
250WY-S | φ406 | φ250 | φ362 | 12-φ25 | ||||
250WYJ-S | ||||||||
300WY-S | φ483 | φ300 | φ432 | 12-φ25 | ||||
300WYJ-S |
