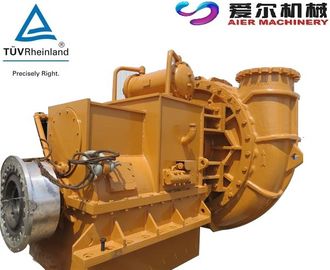

High Effieiency River Sand Pumping Machine For River Dredger / Sand Suction

Large Image : High Effieiency River Sand Pumping Machine For River Dredger / Sand Suction

Product Details:

Place of Origin:	Hebei, China
Brand Name:	Aier
Model Number:	WN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 500-20000 PER SET
Packaging Details:	iron frame, wooden case
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C
Supply Ability:	100 SETS PER MONTH

Contact Now

Detailed Product Description

Material:	A05,A49,Cr26,Cr27, High Chrome Alloy	Structure:	Single-stage
Theory:	Centrifugal	Fuel:	Electric Or Diesel Engine
High Light:	River Sand Pumping Machine , Sand Pumping Machine

Material:

A05,A49,Cr26,Cr27, High Chrome Alloy

Structure:

Single-stage

Theory:

Centrifugal

Fuel:

Electric Or Diesel Engine

High Light:

River Sand Pumping Machine

Sand Pumping Machine

Mud gravel sand pump of abrasion resistant material high chrome cast iron for river dredger, sand suction

Pump Introduction

WS/WSG gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type WS(G) pumps are of high-head ones.

Typical Applications

Tailings, sugar beet, dredging, slag granulation, cyclone feed, slag granulation, suction hopper dredging, barge loading, mill discharge, sand reclamation, booster pumping, sand waste, material transfer, etc.

High Effieiency River Sand Pumping Machine For River Dredger / Sand Suction

Features

Construction of this pump is of single casing connected by means of clamp bans and wide wet-passage. The wet-parts are made of Ni-hard and high chromium abrasion&nd;resistance alloys. The discharged direction of pump can be oriented in any direction of 360°.

This type of pump possesses the advantages of easy installing and operation, good performance of NPSH and abrasion-resistance.

Typies of driver: V belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.

Pump Notation

200WS-F:

200: Outlet diameter: mm

WS: Pump type: Gravel pump

F: Frame plate type

Construction Design High Effieiency River Sand Pumping Machine For River Dredger / Sand Suction

Shaft 2. Mount Base 3Impeller Release Collar 4. Shaft Spacer 5. Seal Assembly 6. Adaptor Plate 7. Back Liner 8. Bowl 9. Clamp Ring 10. Door Clamp Plate 11. Door 12. Impeller 13. Flange

Part Name	Material	Specification	HRC	Application	OEM Code
Bowl, door, back liner & impeller	Metal	AB27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
		AB15: 14%-18% chrome white iron	≥59	Used for higher wear condition	A07
		AB29: 27%-29% chrome white iron	43	Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4	A49
		AB33: 33%-37% chrome white iron		It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.	A33
Expeller & expeller ring	Metal	B27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
Expeller & expeller ring	Metal	Grey iron			G01
Stuffing Box	Metal	AB27: 23%-30% chrome white iron	≥56	Used for higher wear condition with pH between 5 and 12	A05
Stuffing Box	Metal	Grey iron			G01
Door clamp plate, bearing house & base	Metal	Grey iron			G01
Door clamp plate, bearing house & base	Metal	Ductile iron			D21
Shaft	Metal	Carbon steel			E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt	Stainless steel	4Cr13			C21
		304 SS			C22
		316 SS			C23
Joint rings & seals	Rubber	Butyl			S21
		EPDM rubber			S01
		Nitrile			S10
		Hypalon			S31
		Neoprene			S44/S42
		Viton			S50

Model	Allowable Mating Max Power(kw)	Clear Water Performance					Max Particle Through	Impeller Diameter
		Max Capacity	Max Head	Max Allowed Speed	Max Efficiency	NPSH	Max Particle Through	Impeller Diameter
		Q(m3/h)	H(m)	n(rpm)	ŋ(%)	(m)	(mm)	(mm)
100WS-D	60	320	52	1400	58	2.5-3.5	82	378
150WS-E	120	790	50	1400	60	3-4.5	127	378
150WSG-F	260	1050	86	1100	71	2-5	140	610
150WSG-S	560	1050	86	1100	71	2-5	140	610
200WS-F	260	900	50	1000	65	3-7.5	178	533
200WS-S	560	900	50	1000	65	3-7.5	178	533
200WS-X	560	900	50	1000	65	3-7.5	178	533
200WSG-S	560	1420	80	950	72	2-5	180	686
200WSG-X	560	1420	80	950	72	2-5	180	686
250WS-G	600	1600	60	850	65	1.5-4.5	220	667
250WS-ST	560	1600	60	850	65	1.5-4.5	220	667
250WSG-G	600	2850	80	700	73	2-10	210	915
250WSG-T	1200	2850	80	700	73	2-10	210	915
300WS-G	600	3650	70	700	68	2-8	241	864
300WS-T	1200	3650	70	700	68	2-8	241	864
350WS-G	600	3600	44	500	70	3-9	254	1016
350WSG-TU	1200	4000	70	500	72	3-6	230	1220
400WS-G	600	4300	50	500	72	3-6	254	1067
400WS-TU	1200	4300	50	500	72	3-6	254	1067
450WS-TU	1200	5400	46	400	68	3-6	330	1270
