Product Details:
Payment & Shipping Terms:
|
| Material: | A05, A07, A33, A49, R08, R26, R33, | OEM: | Manufacture Accroding To Drawing |
|---|---|---|---|
| Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts | Interchangable: | Interchangable To Most Standard Slurry Pumps |
| Structure: | Horizontal Single-stage | Working Theory: | Centrifugal |
| High Light: | Centrifugal Pump Spare Parts,Slurry Pump Impeller |
||
High Chrome Cast Iron pump parts for Centrifugal sand gravel mining Slurry Pump
Slurry pump parts Specifications
1. Slurry Pump Spare Parts
2. High chrome cast iron
3. 20 years' experience
4. OEM ODM
China Made Industrial Slurry Pump Spare Parts

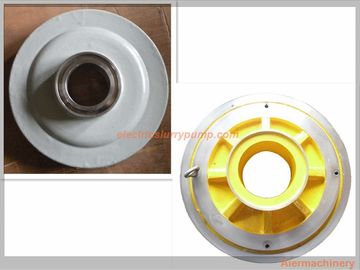

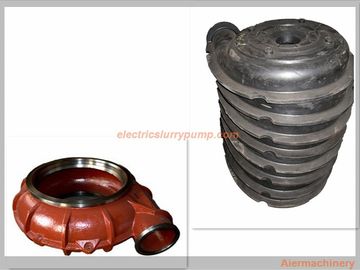

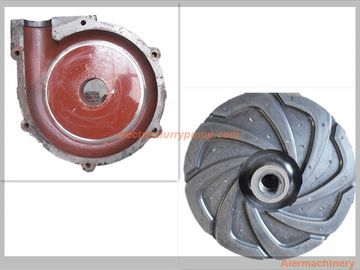

Slurry pump spare parts include:
1. Impeller
2. Volute casing
3. Front/ rear liner plate
4. Front/rear casing
5. Shaft body
6. Motor
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Rubber | R08 | ||||
| R26 | |||||
| R33 | |||||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
