Product Details:
Payment & Shipping Terms:
|
Material: | A05, A07, A33, A49, R08, R26, R33, | OEM: | Acceptable |
---|---|---|---|
Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts | Process: | Cast |
ODM: | Acceptable | ||
High Light: | Pump Parts,Slurry Pump Impeller |
Centrifugal Slurry Pump pump parts for mining , sand dredging, chemical transfering
Brief description of heavy anti-abrasive slurry pump
Heavy abrasive slurry pump is designed and improved on some famous brand slurry pump.Now we can produce different size.The material of wet parts of this slurry pump is alloy or rubber.We choose the best material with high density to produce our slurry pump,so it is enough strong to serve for long time.
Features:
Bearing assembly &nd; a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
Liners &nd; easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomeric. Elastomeric seal rings back all liner joints.

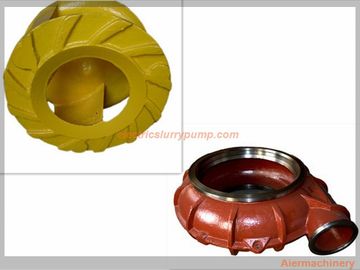

Casing &nd; Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

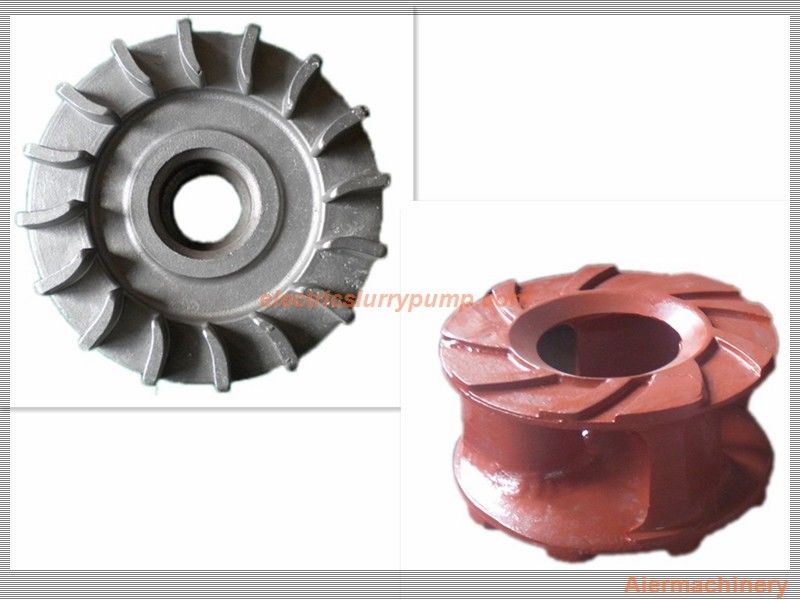

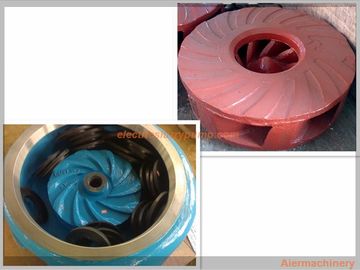

Impeller &nd; front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomeric impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Throat bush &nd; wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
One-piece frame &nd; a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
Materials:
LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
Standard | Chrome Alloy Natural Rubber |
Chrome Alloy Natural Rubber |
SG Iron | SG Iron | Chrome Alloy or SG Iron |
Chrome Alloy or SG Iron |
SG Iron | Rubber and Nitrile |
Options | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon |
Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon |
SG Iron Various grades |
MS Fabricated Cast Iron |
NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151 |
NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile |
EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS |
Ceramic Stellite Chrome Oxide Nordel Neoprene Viton |
