Payment & Shipping Terms:
|Material:||R08, R26, R33, R55||OEM:||Manufacture Accroding To Drawing|
|Application:||Interchangable To Minng Slurry Pump, Ash Slurry Pump, Sand Dreding Pump Parts||Feature:||Corrison Resistant|
|Interchangable:||Interchangable To Most Standard Slurry Pumps|
Electric Sludge Pump,
High Pressure Slurry Pump
Natural Rubber liner of electric slurry pump parts with for anti-acid & corrison resistant material working condition
High Head l mining electric slurry pump is horizontal,cantilevered,centrifugal,single stage
slurry pump, with the advantages of high efficiency, large capacity, non-clogging,
good performance of NPSH and anti-wearing and anticorrosion materials, widely used
for handling the mixture contained of abrasive and corrosive solids in electric power,
metallurgy, mine, coal, constructional material and chemical industry departments,
especially for removing ash and sludge in electric power station.

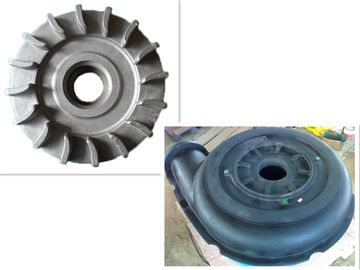

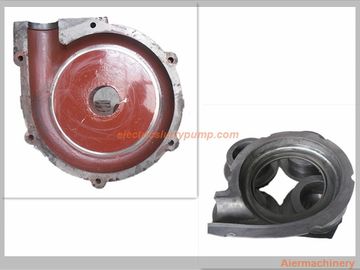

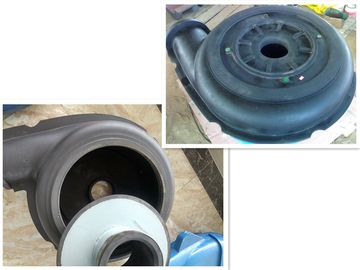

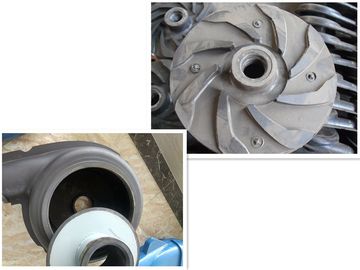

1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Pump Volute;
- Cover Plate & Frame Plate
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
Slurry Pump Part Material
|Part Name||Material||Specification||HRC||Application||OEM Code|
|Liners & Impeller||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|AB15: 14%-18% chrome white iron||≥59||Used for higher wear condition||A07|
|AB29: 27%-29% chrome white iron||43||Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4||A49|
|AB33: 33%-37% chrome white iron||It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.||A33|
|Expeller & expeller ring||Metal||B27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Stuffing Box||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Frame/Cover plate, bearing house & base||Metal||Grey iron||G01|
|Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt||Stainless steel||4Cr13||C21|
Shijiazhuang Aier Machinery Co., Ltd. is a large-scale professional manufacturer of slurry pumps, gravel pumps, dredge pumps, sewage pumps and clean water pumps in China.
All products are mainly supplied to environmental protection, wastewater treatment, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, tailing disposal and other fields. The products are selling well in China and sold far to Germany, U.S., Canada, Australia, Russia, Ukraine, Kazakhstan, Brasil, Chile, Argentina, Bolivia, Malaysia, Indonesia, India, Poland, South Africa, Tanzania, etc.
Our firm has strong technical force and is specially engaged in the research of abrasion resistant materials of slurry pumps, sewage pumps and water pumps and the development of new products. The materials include high chrome white iron, duplex stainless steel, stainless steel, ductile iron, rubber, etc.
We use CFD, CAD method for product design and process design based absorbing experience of world leading pump companies. We integrate molding, smelting, casting, heat treatment, machining and chemical analysis, and have professional engineering and technical personnel.
Our company started to build our new factory in 2013 and finished in Spring of 2014. The new factory is located in Lincheng Xingtai Hebei, covering 67,000 m2 and of annual design annual casting capacity 3,000 tons. In the new factory, we can produce different parts from small to huge. Casting & machining orders are welcome as well.
