Product Details:
Payment & Shipping Terms:
|
| Features: | Anti-acid, Corrison Resistant | Material: | A05, A07, A33, A49,R08, R26, R33, |
|---|---|---|---|
| OEM: | Manufacture Accroding To Drawing | Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts |
| Process: | Cast | ||
| High Light: | Centrifugal Pump Spare Parts,Slurry Pump Impeller |
||

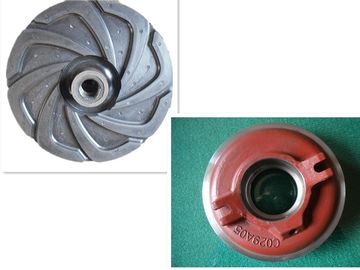

Rubber Lined slurry pump parts of Centrifugal Mining Slurry Pump impeller, liner
Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.
- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
Slurry pump parts-----impeller:
The pump impeller is made of rubber or metal, and the metal liner and rubber liner are interchangeable .The back vane can reduce the sealing pressure ,and it can also cut down backflow to the largest extent at the same time .On the other hand ,cast-in impeller threads are more suitable for slurry .
Slurry pumps parts-cover plate liner & frame plate liner
The cover plate is produced using elastomer or hard metal,
such as natural rubber, high - chromium alloy, etc.
It has various sizes and styles, and the installation is very easy. Additionally, OEM design is accepted. This product is also named as slurry pump liner, and it is also an overflow component. It can form a pump chamber with throat bush and frame plate liner insert. Meanwhile, it is white iron with high-chromium alloy whose content as much as 27%, and it shows good resistance to abrasion
2. Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Rubber | R08 | ||||
| R26 | |||||
| R33 | |||||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Frame/Cover plate, bearing house & base | Metal | Grey iron | G01 | ||
| Ductile iron | D21 | ||||
| Shaft | Metal | Carbon steel | E05 | ||
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | C21 | ||
| 304 SS | C22 | ||||
| 316 SS | C23 | ||||
| Joint rings & seals | Rubber | Butyl | S21 | ||
| EPDM rubber | S01 | ||||
| Nitrile | S10 | ||||
| Hypalon | S31 | ||||
| Neoprene | S44/S42 | ||||
| Viton | S50 |
