| High Light: | Hydraulic Dredge Pump,Sand Pumping Machine |
||
|---|---|---|---|

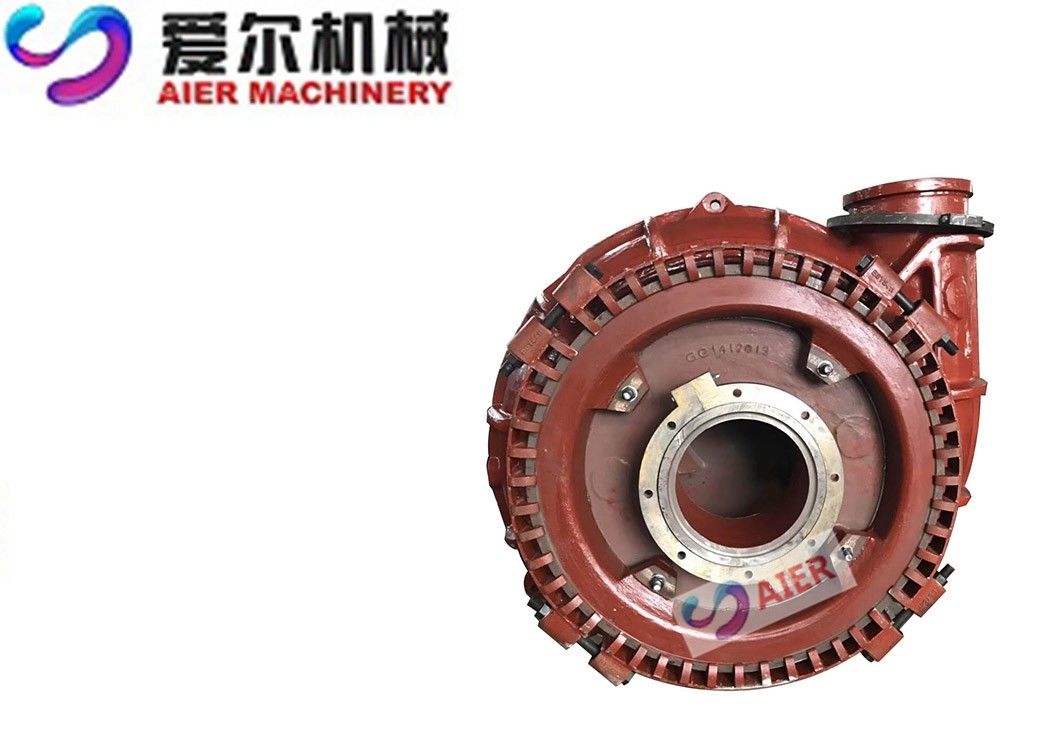

14/12G-G heavy duty sludge dredging pump suitable to sand pump
Sand gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type WS(G) pumps are of high-head ones.
Typical Applications
Tailings, sugar beet, dredging, slag granulation, cyclone feed, slag granulation, suction hopper dredging, barge loading, mill discharge, sand reclamation, booster pumping, sand waste, material transfer, etc.
| AIER MACHINERY WS GRAVEL PUMP PERFORMANCE CURVE IN CLEAR WATER |
||||||||
| Pump Type |
Inlet/Outlet Dia.(mm) |
Frame Type |
Max Allowable Power(kw) |
Max Allowable Particle Size(mm) |
Impeller: | |||
| Vanes | Type | Material | Dia.(mm) | |||||
| 14/12 | 400/350 | G | 600 | 254 | 3 | Close | Chrome Alloy | 1016 |
| If expeller seal, power + 5% | Seal Type | Packing, expeller, mechanical | ||||||
