| Features: | Long Lift, Horizontal, Centrifugal | Material: | A05, A07, A33, A49 , R08, R26, R33, |
|---|---|---|---|
| OEM: | Manufacture Accroding To Drawing | Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts |
| Standrad: | Parts Code | ||
| High Light: | Centrifugal Pump Spare Parts,Slurry Pump Impeller |
||
high chrome mining slurry pump parts of anti-wear & corrison resistant A05, A49, Cr26,Cr27 high chrome cast irom
Introduction of MiningSlurry Pump :
1. Abrasion and corrosion resisting
2. Material: hard alloy metal (Cr27, Cr28, CD4MCu) or rubber liner optional,
3. Shaft seal: packing seal, expeller seal, and mechanical seal.
4. Power driver: electrical motor or diesel engine.
1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.

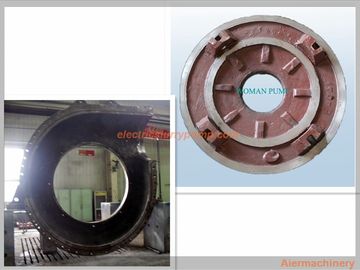

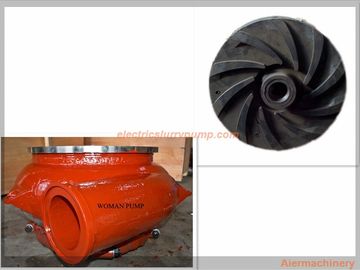

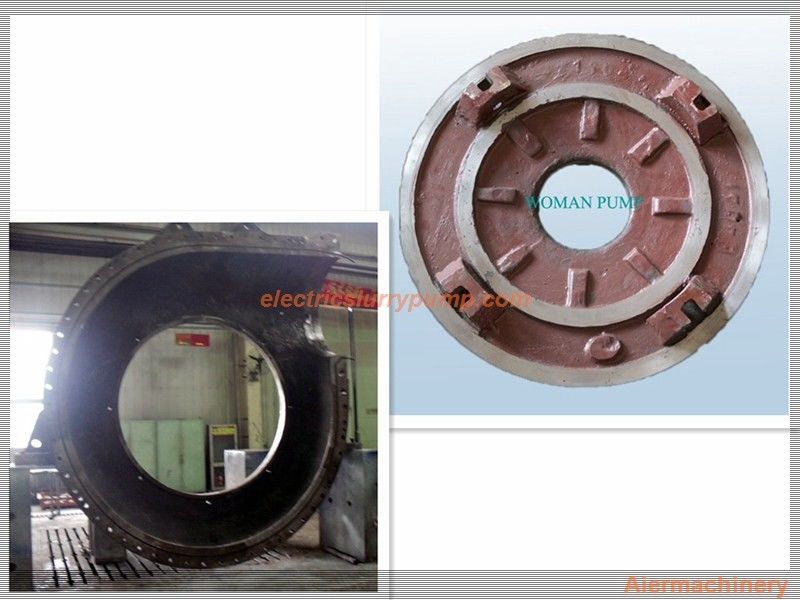

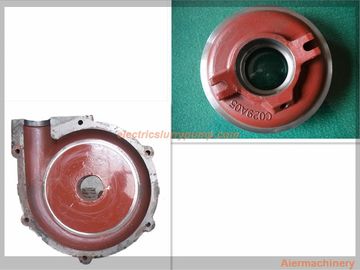

- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
Our centrifugal slurry pump wear parts are designed by Spatial Structure CFD and Impeller Casting CAE. Our pump wear parts are made in our foundry and finished in our workshop with strict quality control. These high quality alloy wet- ends provide our customers with longer wear life due to metallurgical advancements and improved efficiency due to patented hydraulics. The users enjoy perfect fit and finish to reduce installation workload. Whether solids transport in the front-end, in-plant processing or tailings, we can produce the best parts for your application.
1. Slurry pump spare parts are mainly made of high-chromium alloy, hard nickel alloy, hastelloy alloy or elastic material, depending on the demand for chromium content in practical application.
2. Most of our slurry pump rubber parts contain natural rubber and synthetic rubber .The natural rubber type shows
some excellent properties ,such as good resistance to acid and corrosive slurry ,good abrasion resistance to small particles, etc. On the other hand, the synthetic rubber type possesses outstanding resistance to abrasion, corrosion as well as high temperature.
3.The slurry pump spare parts we supplied are suitable for standard slurry pump including vertical sump pump ,gravel pump and related 4 mining pumps ,and these products are all qualified .In addition ,we have built up our own factory for casting ,machining, testing and other procedures .
4. OEM drawing of slurry pump is acceptable, and we will provide our client with samples first for the quality ins
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Rubber | R08 | ||||
| R26 | |||||
| R33 | |||||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
