|Material:||A05, A07, A33, A49, Cr27, Cr26, Cr30||OEM:||Acceptable|
|Application:||Mining, Sand Dredging, Slurry Suction||Process:||Casting|
Diesel Slurry Pump,
Abrasive Slurry Pump
Centrifugual mining slurry pump parts of anti-wear & corrison resistant A05, A49, Cr26,Cr27 high chrome material

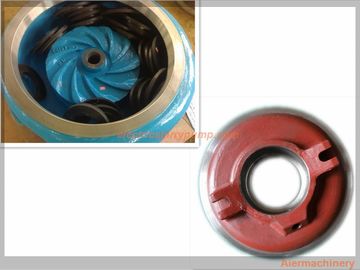

1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Pump Volute;
- Cover Plate & Frame Plate
WA series of Mining Sand Mud Slurry Pump
Structure feature :cantilevered, horizontal,
Material of wet parts: natural rubber or hard metal (high chrome cast iron)
Application range: handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industry department.
SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, sugar beet, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, slag granulation, phosphoric acid, coal, flotation, process chemical, pulp and paper, FGD, cyclone feed, etc.
The frame plate for WA series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners.
The shaft seals for WA series can be packing seal, centrifugal seal or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.
|Part Name||Material||Specification||HRC||Application||OEM Code|
|Liners & Impeller||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|AB15: 14%-18% chrome white iron||≥59||Used for higher wear condition||A07|
|AB29: 27%-29% chrome white iron||43||Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4||A49|
|AB33: 33%-37% chrome white iron||It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.||A33|
|Expeller & expeller ring||Metal||B27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Stuffing Box||Metal||AB27: 23%-30% chrome white iron||≥56||Used for higher wear condition with pH between 5 and 12||A05|
|Frame/Cover plate, bearing house & base||Metal||Grey iron||G01|
|Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt||Stainless steel||4Cr13||C21|
|Joint rings & seals||Rubber||Butyl||S21|
