Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation

China Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation supplier
Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation supplier Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation supplier Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation supplier Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation supplier

Large Image :  Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation

Product Details:

Place of Origin: Hebei, China
Brand Name: Aier
Model Number: WA,WG,WY,WZ,WL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: iron frame, wooden case
Delivery Time: 20-40 DAYS
Payment Terms: T/T, L/C
Supply Ability: 200 PER MONTH
Contact Now
Detailed Product Description
Material: A05, A07, A33, A49, R08, R26, R33, R55 OEM: Acceptable
Application: Interchangable To Sand Dredging Slurry Pump, Ash Slurry Pump, Sand Dreding Pump Parts Process: High Chrome Casting

River dredging sand pump parts of long life wear resistant high chrome cast iron material for river grave dredging



Heavy duty wear resistant Sand dredging pump

Pump introduction





Sand dredging pump pump is a single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, wear-resistant, high efficient performance, perfectly suited for the dredger. It throughout meets requirements of the dredger to dredging pumps. All the parts are interchangable dimensionally with international famous brand pumps

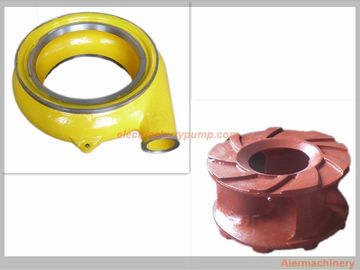

1. sand gravel and Slurry pump parts



Completely interchangeable with slurry pumps and  gravel pumps

For unlisted slurry pump parts, OEM service offered---Drawings needed.

Impeller

Metal Liner

Rubber Liner

Bearing Assembly

Base

- Pump Volute;

Cover Plate & Frame Plate

Others







Slurry Pump Part Material



Part Name Material Specification HRC Application OEM Code
Liners & Impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron   It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Rubber       R08
      R26
      R33
      R55
Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron     G01






Horizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy OperationHorizontal Type Sand Pumping Equipment , Sand Slurry Pump Easy Operation
